Connection

Detailed description

Two-wire connection is not accurate, rotating images, you will find the image is not connected.

Response

Message

Date: 2011-10-20 07:09
Sender: Jianlong Zhou

The question can be described like this: when the user wants to connect the end point of one curve to another curve, the curves appear connected from one viewing direction. But when rotating the model to an another viewing direction, the curves are not connected at all. The attached two images exactly show this phenomena.

This phenomena is common in 3d displaying. This is not the accurate problem of curve connection. To avoid this phenomena, the user may need to rotate the 3d model when drawing the second curve or to make sure that the neurons are exactly connected in the original data.

Attached Files:

Name Download

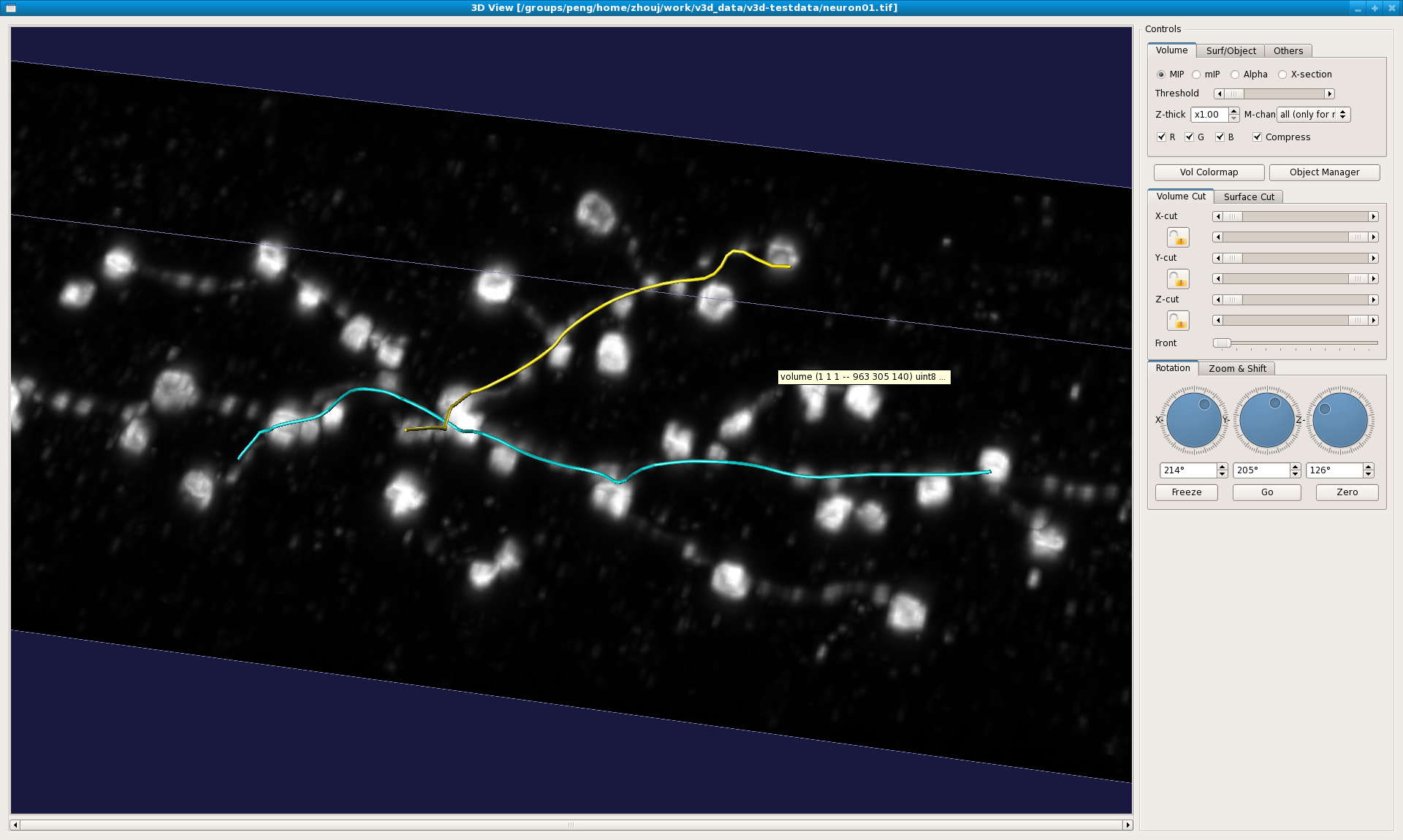

connectbefore.png Download

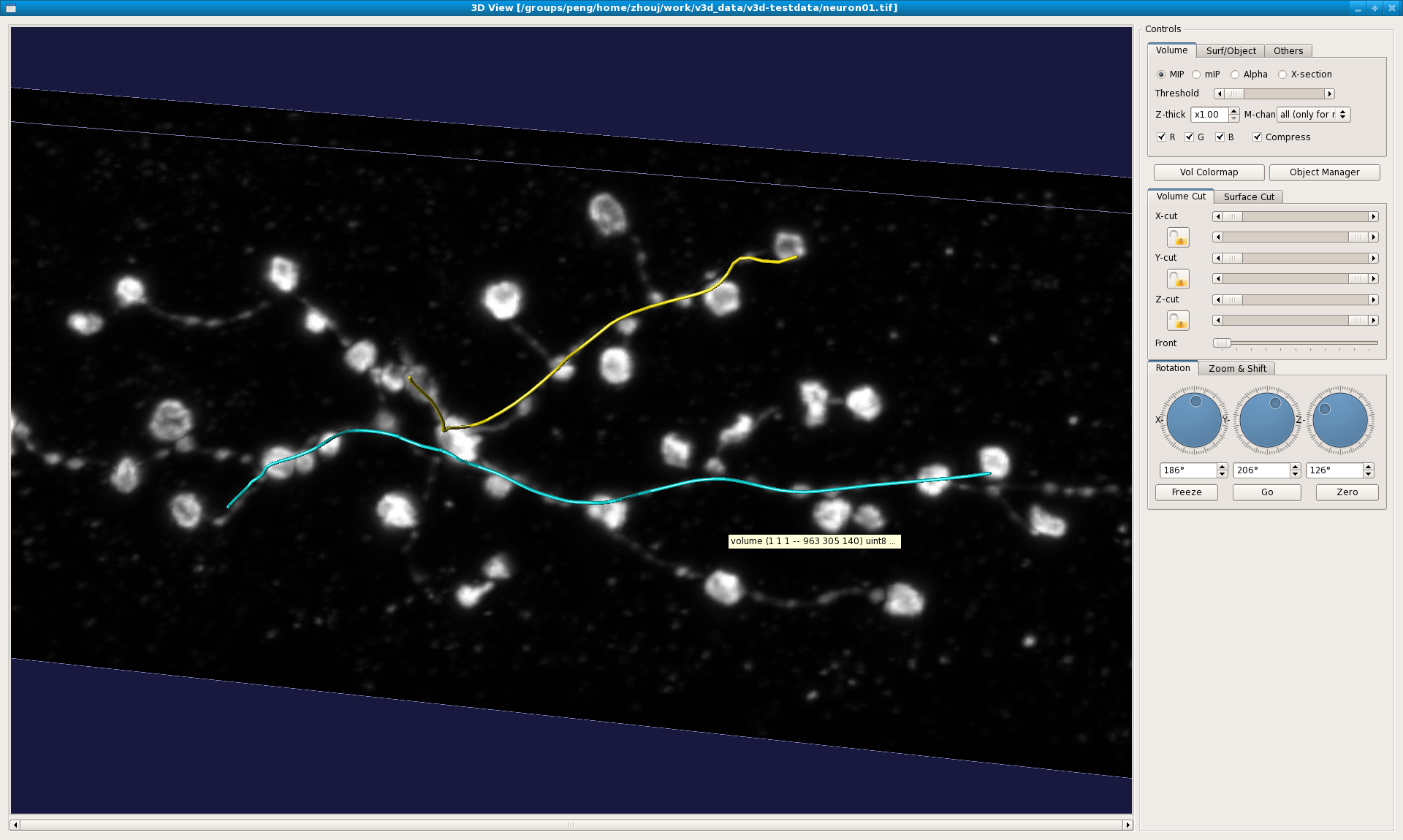

connectafter.png Download
