help > RE: 3D rendering of subcortical structures and overlaying statistical maps using surf ice
Apr 25, 2022 03:04 PM | Chris Rorden
RE: 3D rendering of subcortical structures and overlaying statistical maps using surf ice
The first issue here is that the files you provided are not valid
gzip format files, which explains why Surfice, FSLeyes, MRIcroGL,
etc can not read them. Specifically, they have the gzip header and
lz77 data stream, but omit the gzip footer. So the first task is to
uncompress these to simple .nii files (and optionally recompress
them to proper .nii.gz files).

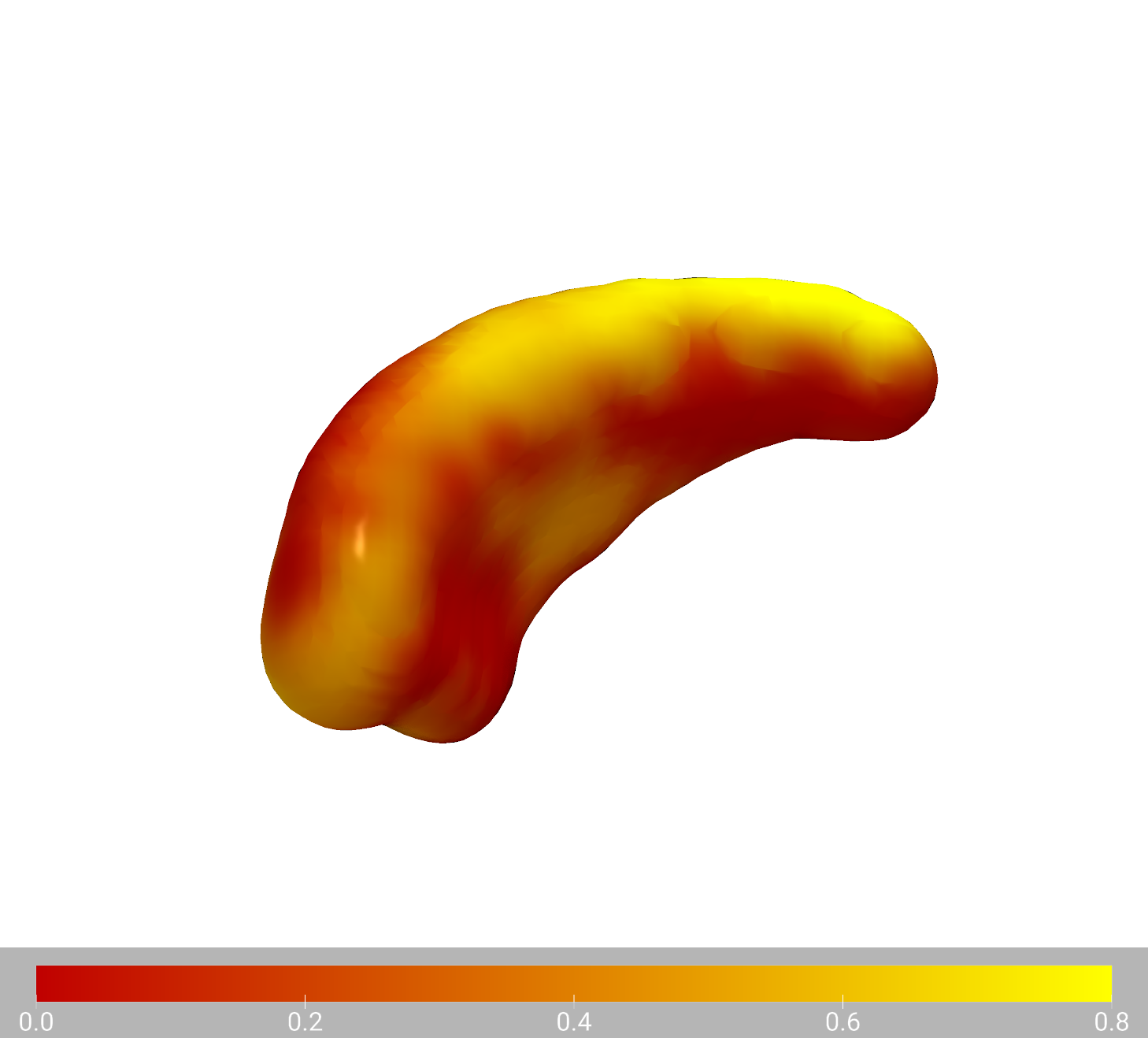

You can then use Surfice's Advanced/ConvertVolxelwiseVolumeToMesh to turn your hippocampus mask into a triangulated mesh. You need to choose a reasonable intensity for your isosurface boundary. Finally, you can load you TFCE statistical map as an overlay.
You can then use Surfice's Advanced/ConvertVolxelwiseVolumeToMesh to turn your hippocampus mask into a triangulated mesh. You need to choose a reasonable intensity for your isosurface boundary. Finally, you can load you TFCE statistical map as an overlay.
