Mar 28, 2014 02:03 PM | Rodolphe Nenert
Surface missing part.
I was recently confronted to the problem that with some overlay,
some part of the surface were missing.
Do you know why that is?

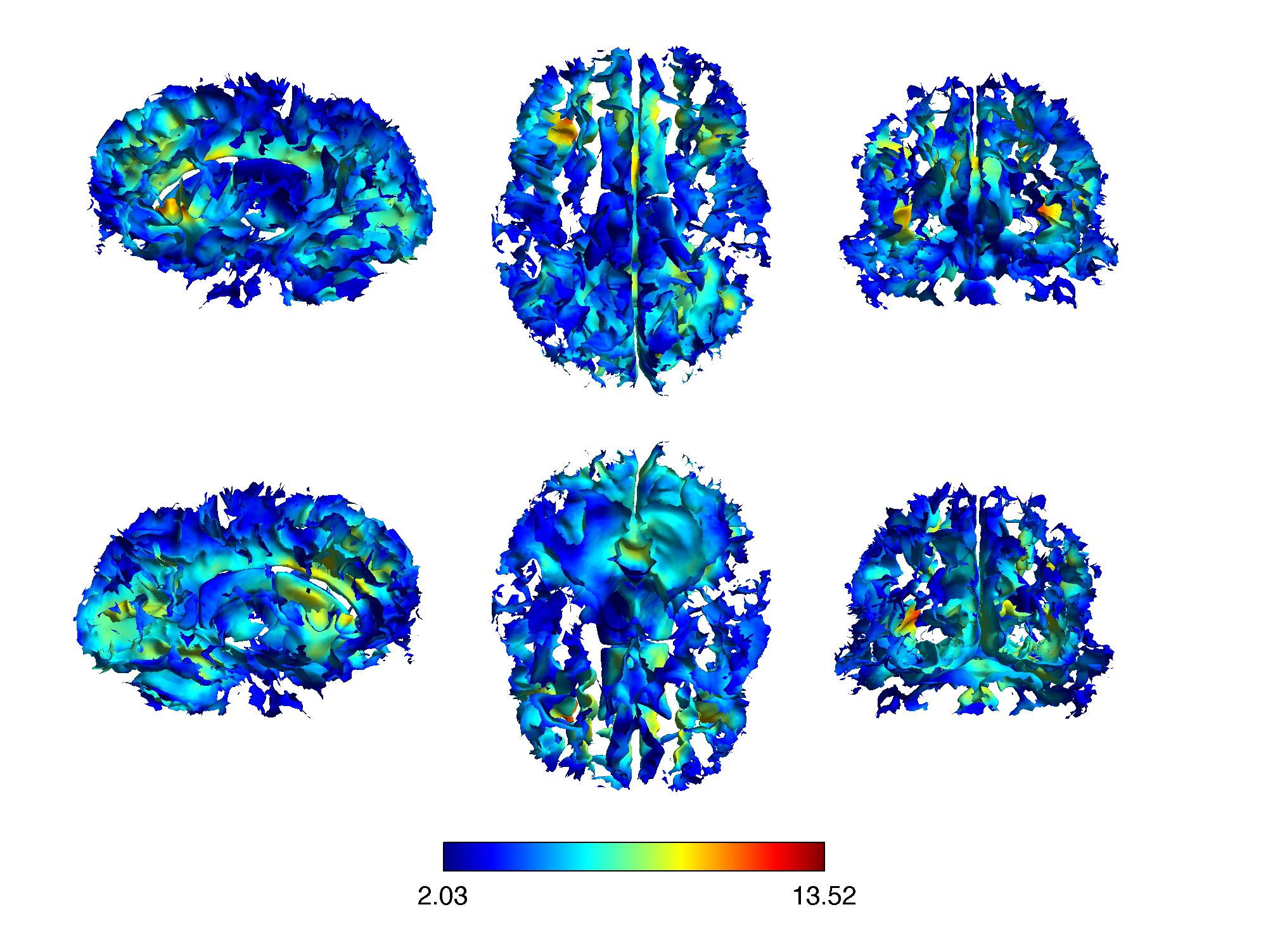

I attached an example image of that problem.
Thanks.
Do you know why that is?
I attached an example image of that problem.
Thanks.
Mar 29, 2014 01:03 AM | Mingrui Xia
RE: Surface missing part.
Hi, which brain surface did you use? Could you please send me the
file?
Apr 3, 2014 09:04 PM | Rodolphe Nenert
RE: Surface missing part.
I used the CH2 surface template.
Im joining the functional file i used. This file was generated by SnPM toolbox.
Thanks
Im joining the functional file i used. This file was generated by SnPM toolbox.
Thanks
Apr 4, 2014 02:04 AM | Mingrui Xia
RE: Surface missing part.
The nifti file looks good. I'm concerning about the surface file
(*.nv). Could you please tell me if you have modified the original
template? And Could you please try any other template files (e.g.
BrainMesh_ICBM152_smoothed.nv)?
Best,
Mingrui
Best,
Mingrui
Apr 9, 2014 04:04 PM | Rodolphe Nenert
RE: Surface missing part.
Hello,
i did not modify anything from your toolbox, template nor scripts.

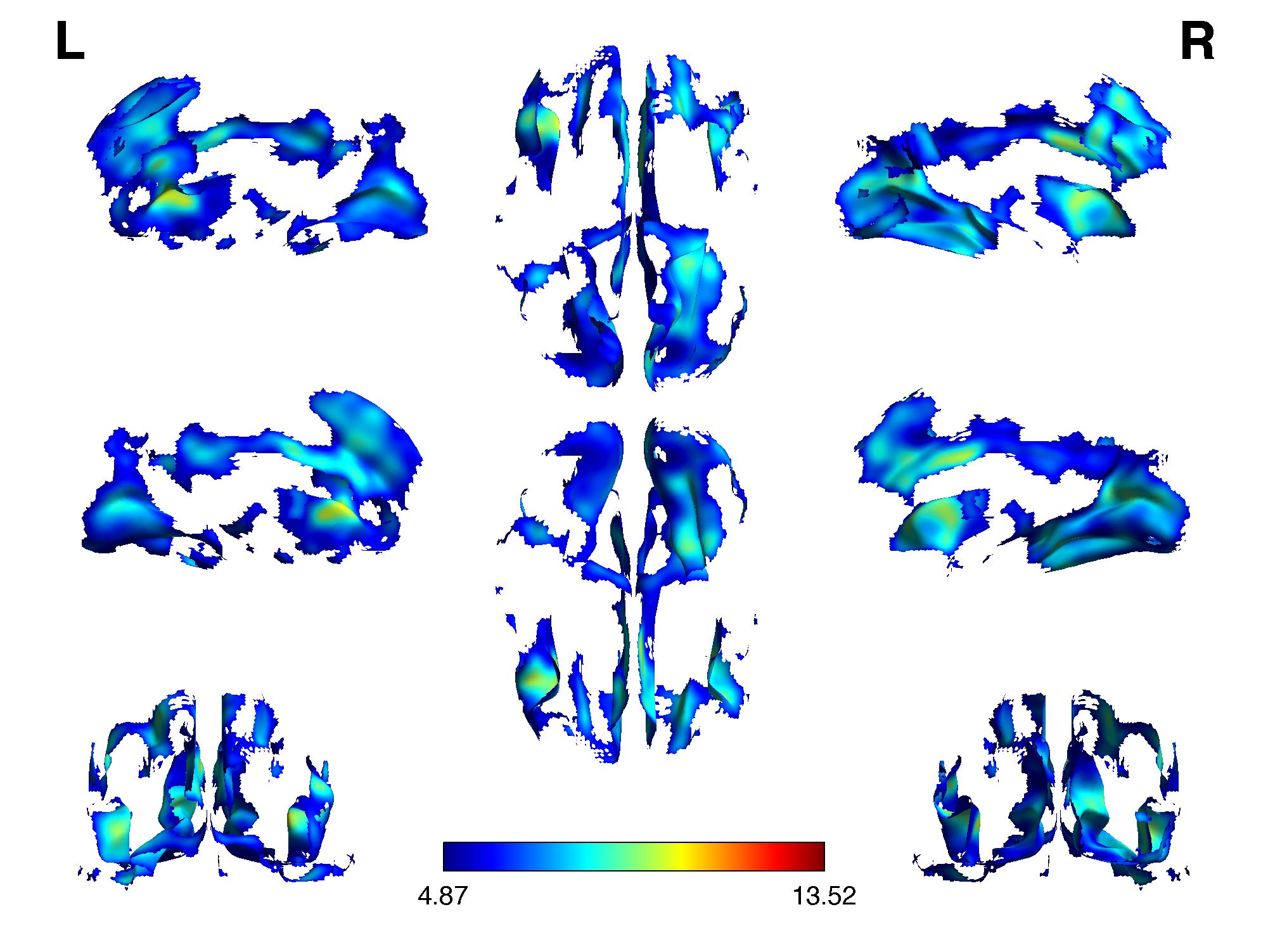

Here is the result with the template you suggested, same result.
i did not modify anything from your toolbox, template nor scripts.
Here is the result with the template you suggested, same result.
Apr 9, 2014 04:04 PM | Rodolphe Nenert
RE: Surface missing part.
Let me give you my option file too, just in case.
Apr 10, 2014 02:04 AM | Mingrui Xia
RE: Surface missing part.
Hi, I found that the issue is because there are 'NaN' value in the
volume. I modified the main program to transfer the 'NaN' to zero.
Could you please replace your file with the attached one?
Apr 10, 2014 03:04 PM | Rodolphe Nenert
RE: Surface missing part.
This new version solved my problems, NaN were indeed the problem.
Thanks a lot!
Thanks a lot!
