Hi Alfonso,

My project is exploring the correlation between Frailty and Connectivity.

My between-subject contrast is:
Effect of Frailty, controlling for age, sex, and education. Set-up as:
[0 1 0 0 0]
[AllSubjects Frailty Age Sex Education]

I conducted a seed-voxel analysis using the right Hippocampus, and it demonstrated higher or increasing connectivity with one cluster. Meaning, increasing connectivity between the Hippocampus and cluster is correlated with increasing Frailty. I now want to display this in the calculator for a visual representation:

1) I "Imported Values" of the cluster showing increased connectivity with the Hippocampus to my 2nd-level covariates. Then in calculator I...

2) Set up my between-subjects contrast in an identical format:
Effect of Frailty, controlling for age, sex, and education. Set-up as:
[0 1 0 0 0]
[AllSubjects Frailty Age Sex Education]

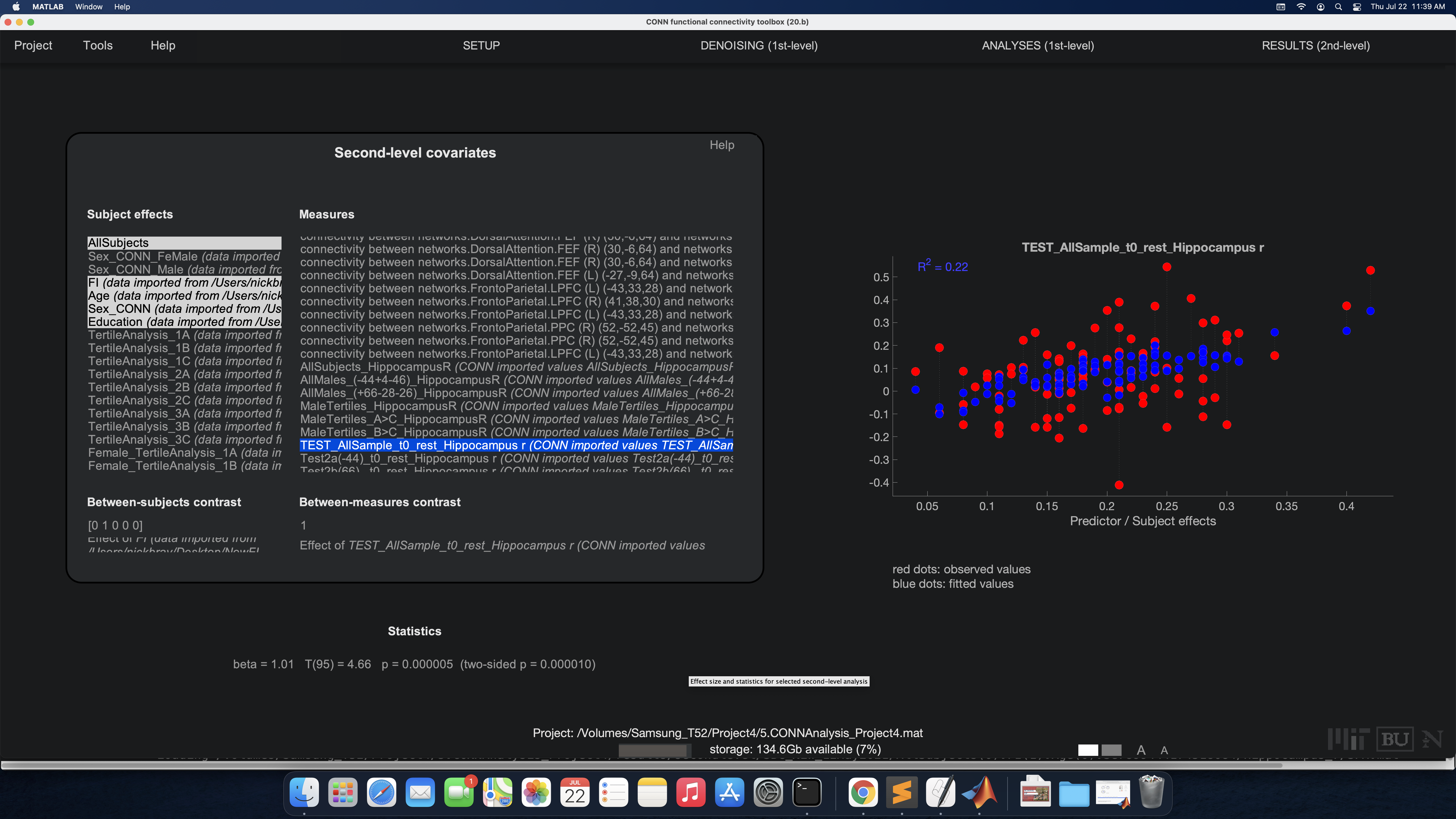

3) For between-measures contrast, I simply selected the imported cluster. *See Screenshot further clarification*

In short, is this approach correct? Is the scatterplot a visual representation of my 2nd-level results? I reviewed this thread (https://www.nitrc.org/forum/message.php?...) and believe I am on the track but just wish to confirm.

Cheers,

Nick
